Back Porch Addition – Expanding Comfort & Style!
This project enhances the outdoor space with a durable, well-crafted back porch addition that blends seamlessly with the existing home. Here’s what’s included:
🔨 Demolition & Prep:

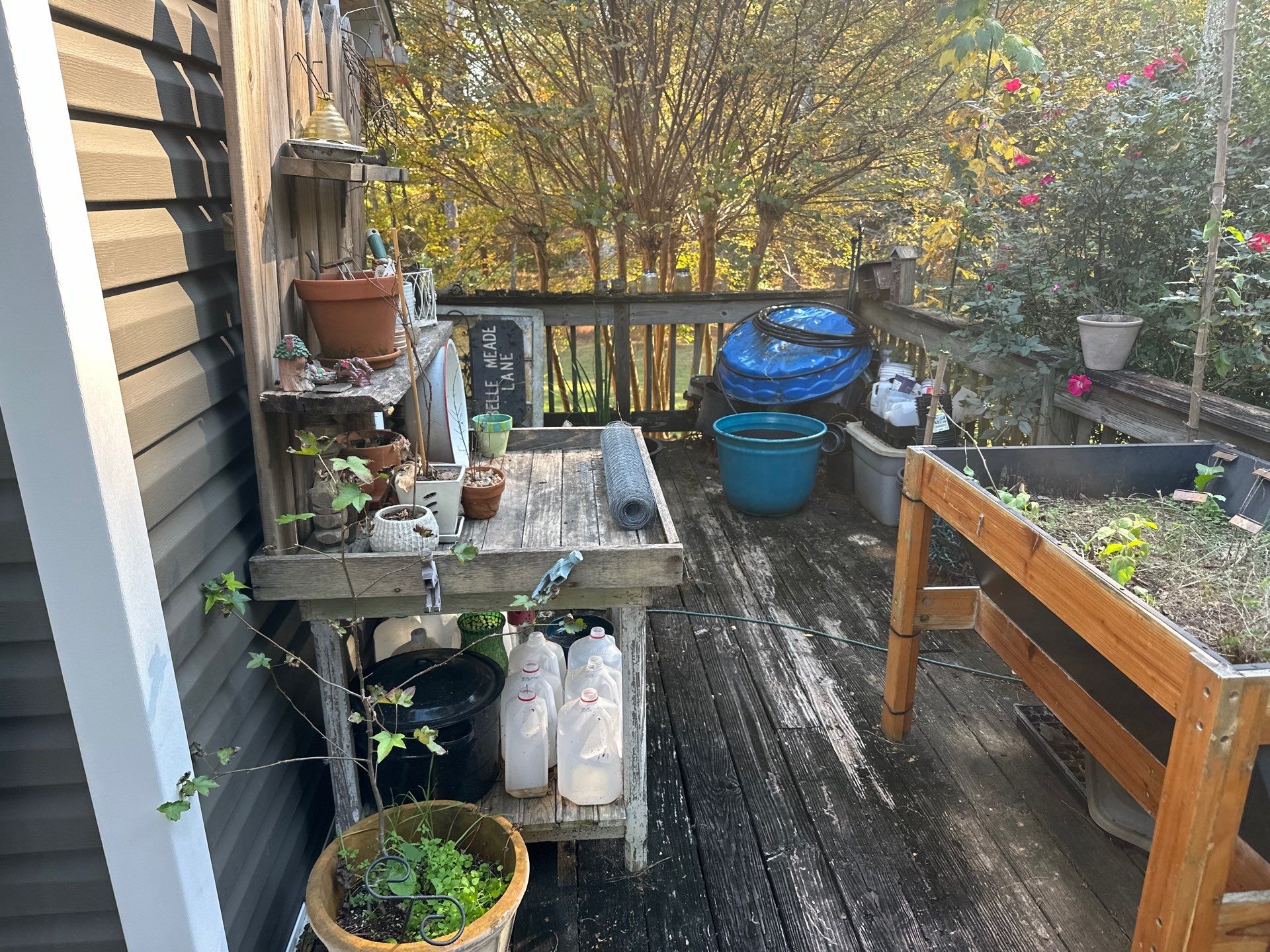

✔️ Remove the existing porch and demo gable overhang for new roof attachment
✔️ Detach existing gutters & downspouts on the back elevation for new 6” gutter system installation
🛠️ Deck Construction:
✔️ Install 2x12 ledger board with 1/2” x 7” bolts spaced 2’ apart to secure deck to the house

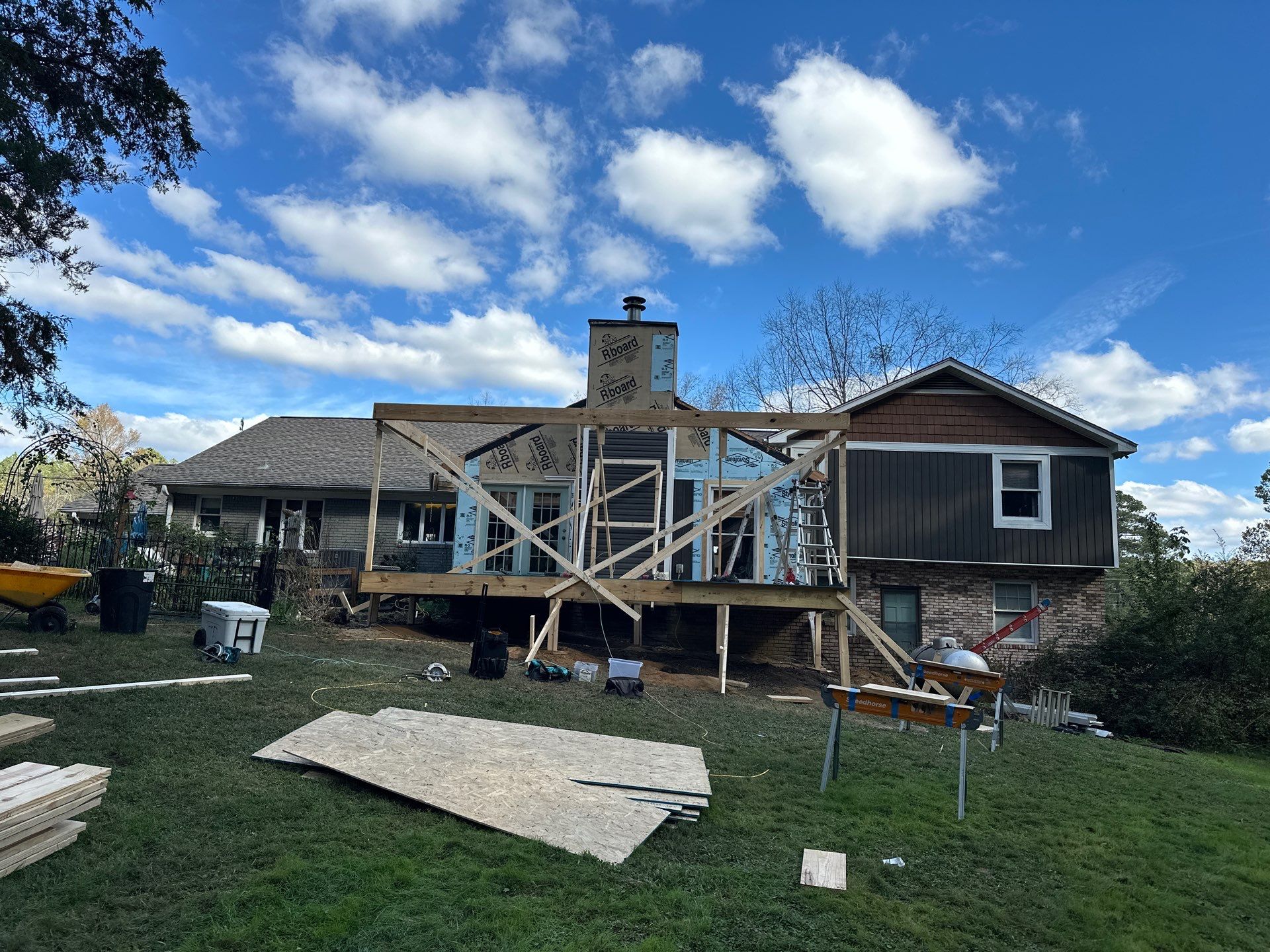

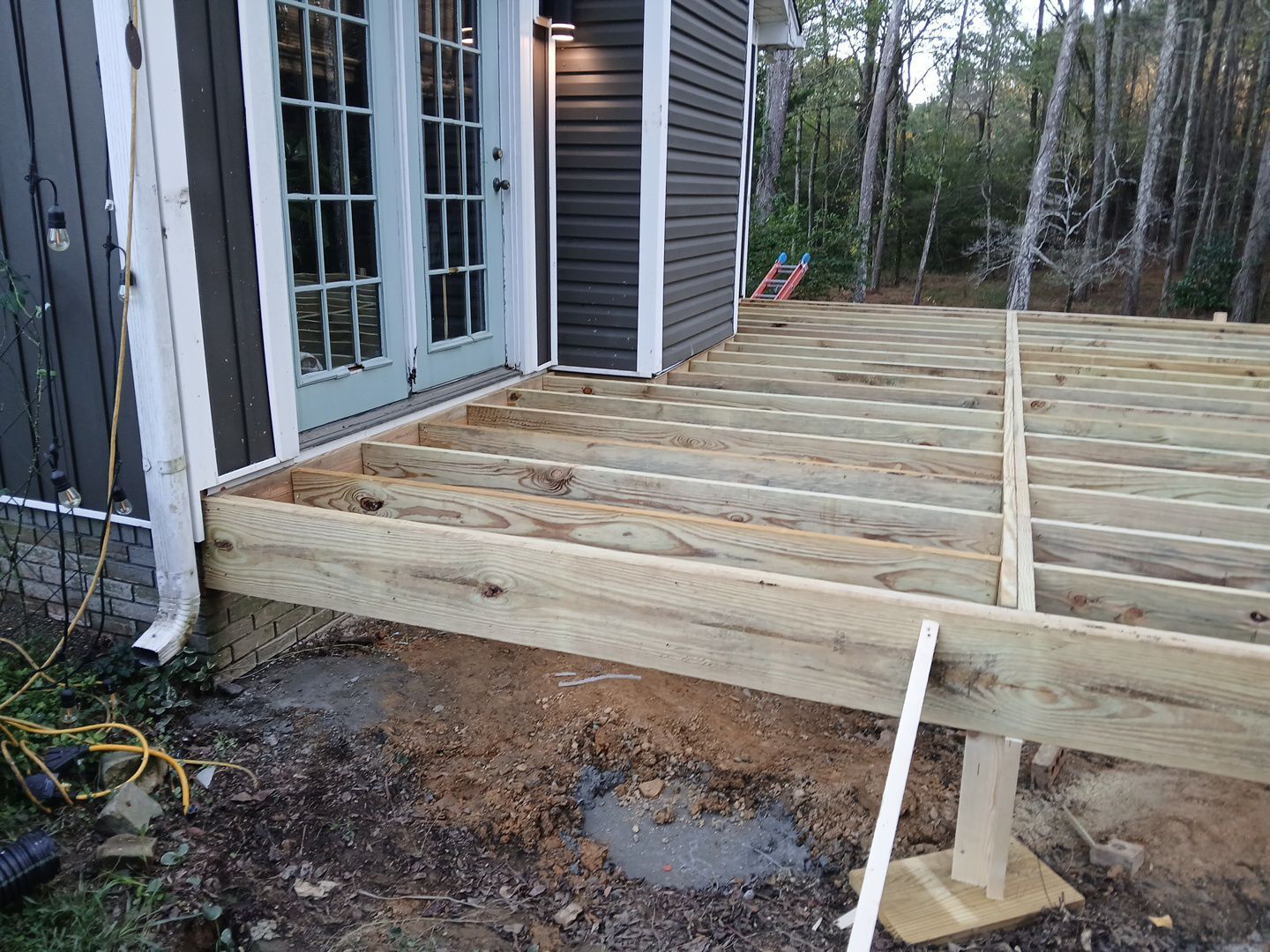

✔️ Construct a 22'9.5" W x 16' D deck frame with 2x12 double beams and 2x12 joists on 16” centers
✔️ Secure joists with joist hangers for added stability
✔️ Excavate six 20” x 20” footings with gravel base, reinforced with rebar, and pour concrete
✔️ Anchor deck with (6) 4x4 metal plates and anchor bolts

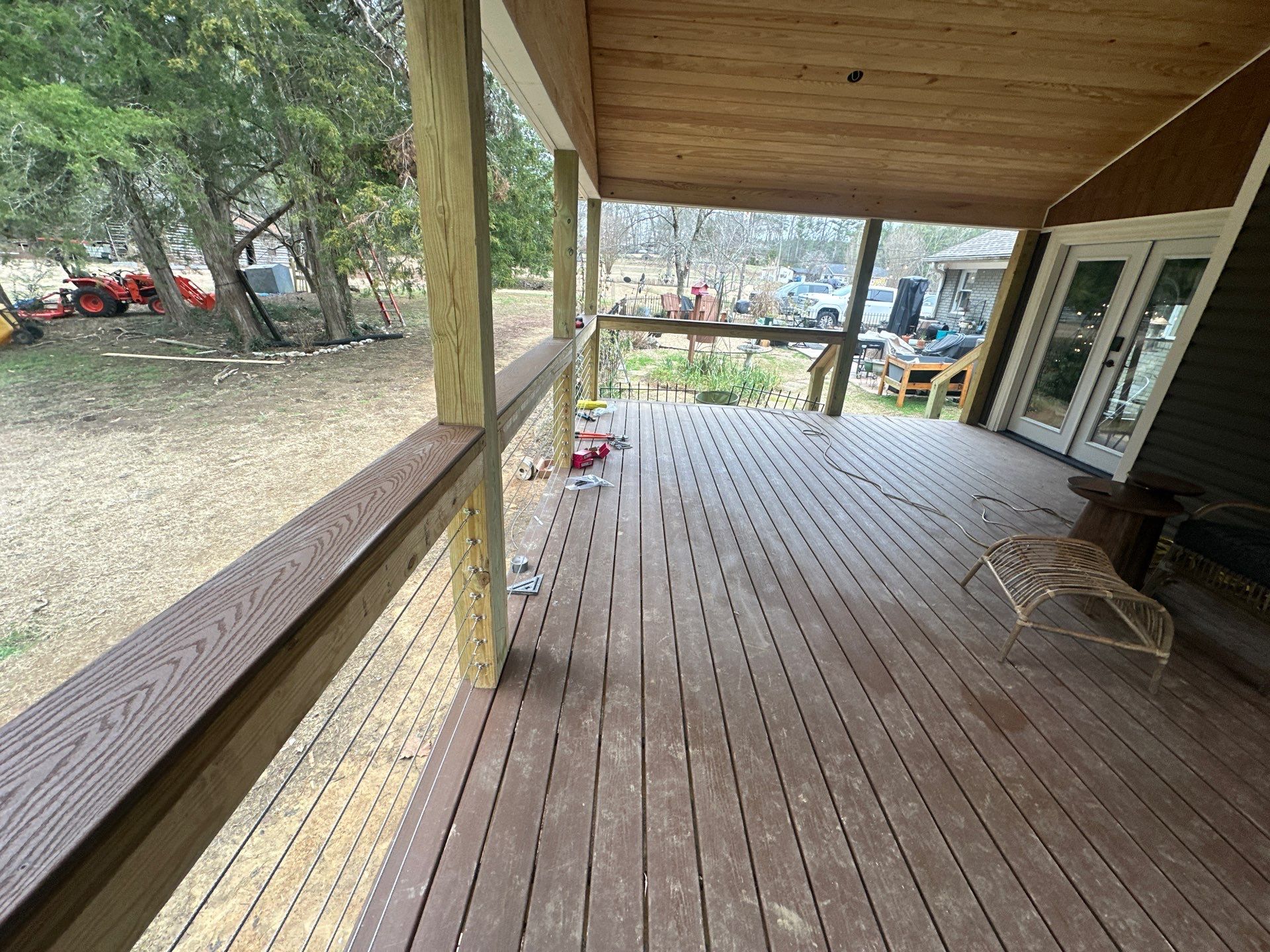

✔️ Install Trex Select composite decking with a hidden clip and screw system for a sleek finish
✔️ Install solid composite decking boards around the perimeter
🚪 Steps & Railings:

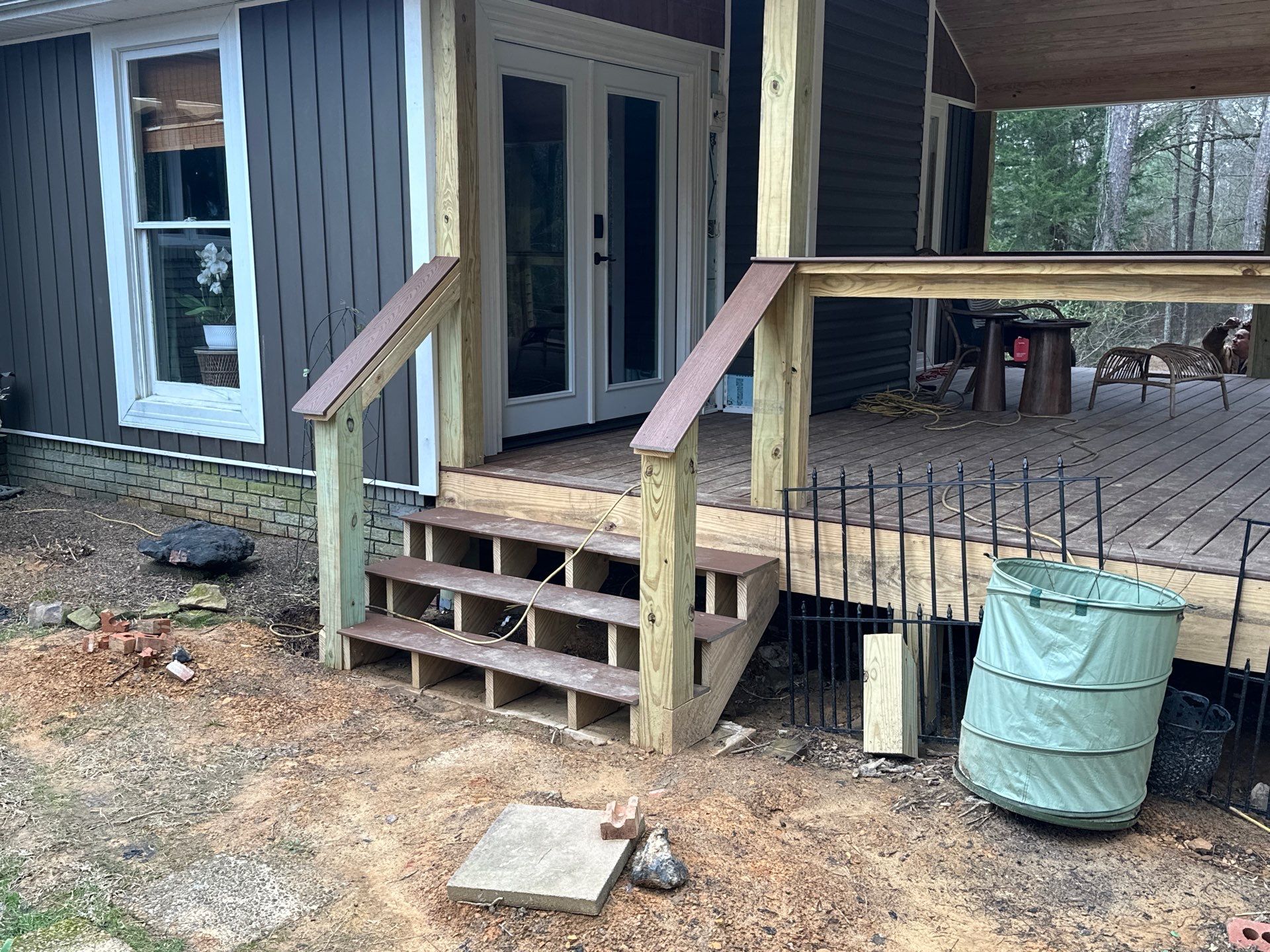

✔️ Pour 6' long x 20" wide x 4" thick concrete pad for step base
✔️ Construct (4) 2x12 stringers & (3) 2x12 treads for stairs

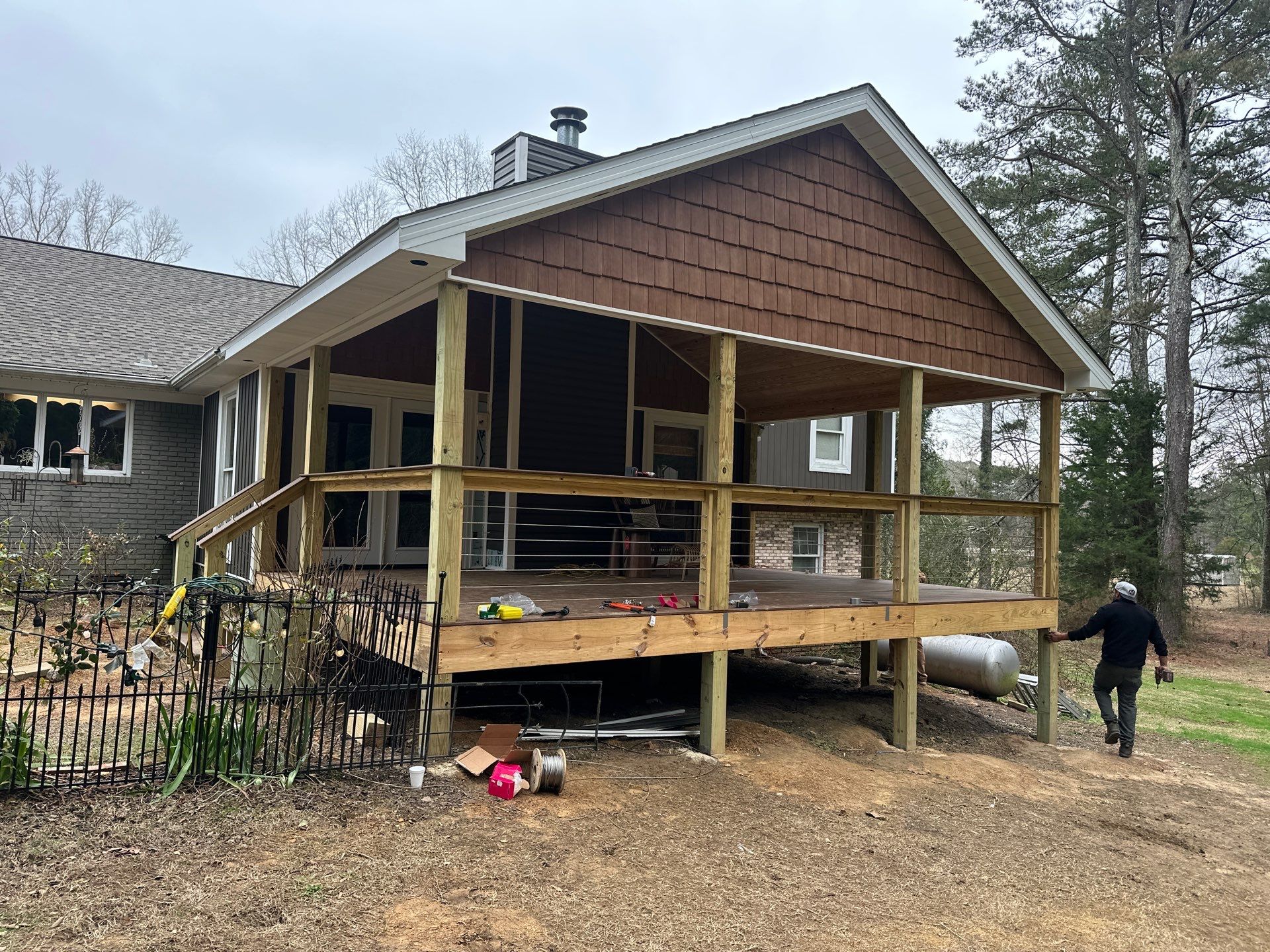

✔️ Install stainless steel cable handrails with 9 horizontal lines for both the deck and stairway
✔️ Install 1x8 composite trim over handrails for a polished look
🏠 Roof Addition:
✔️ Remove existing gable overhang to attach the new roof seamlessly

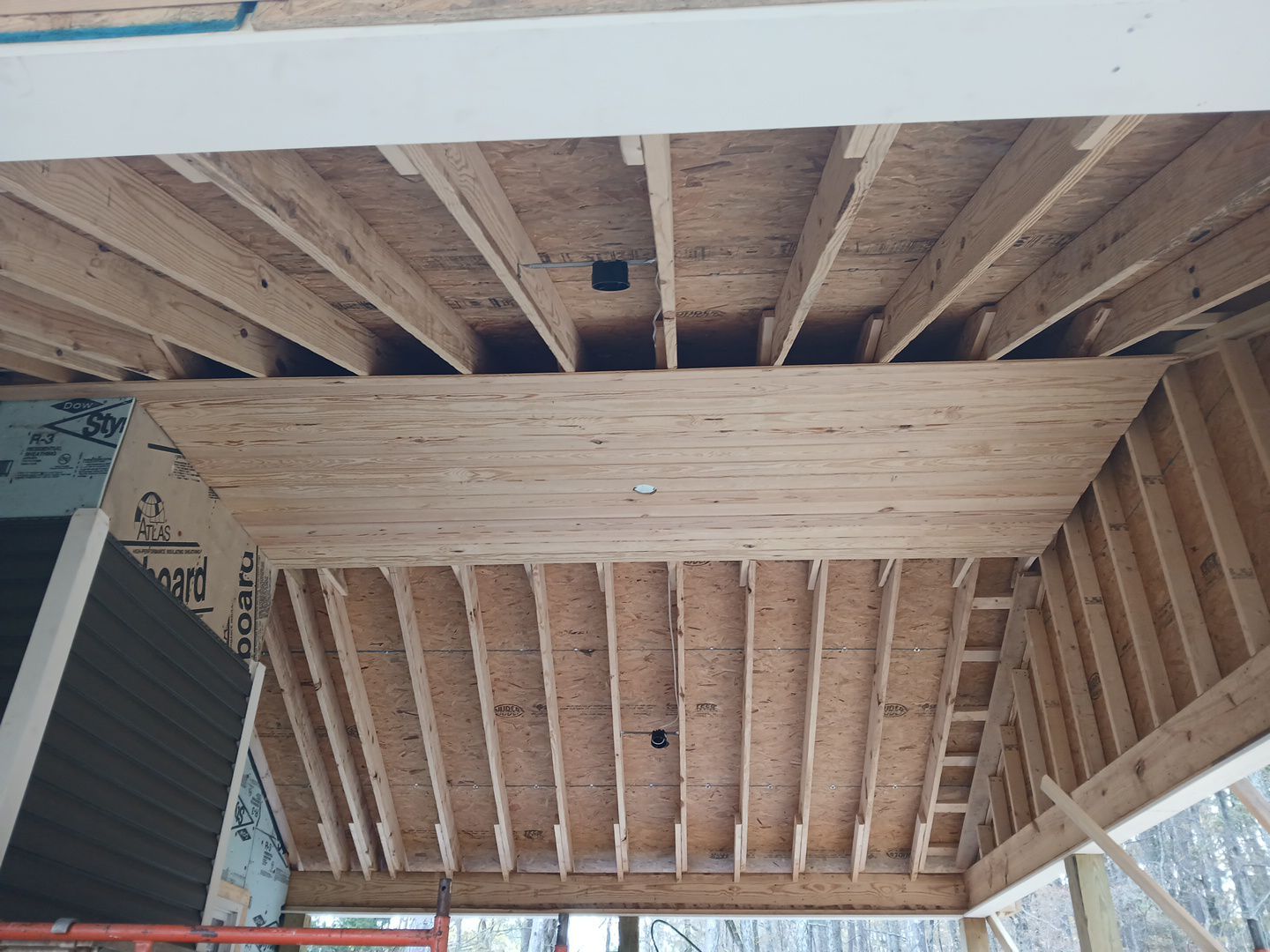

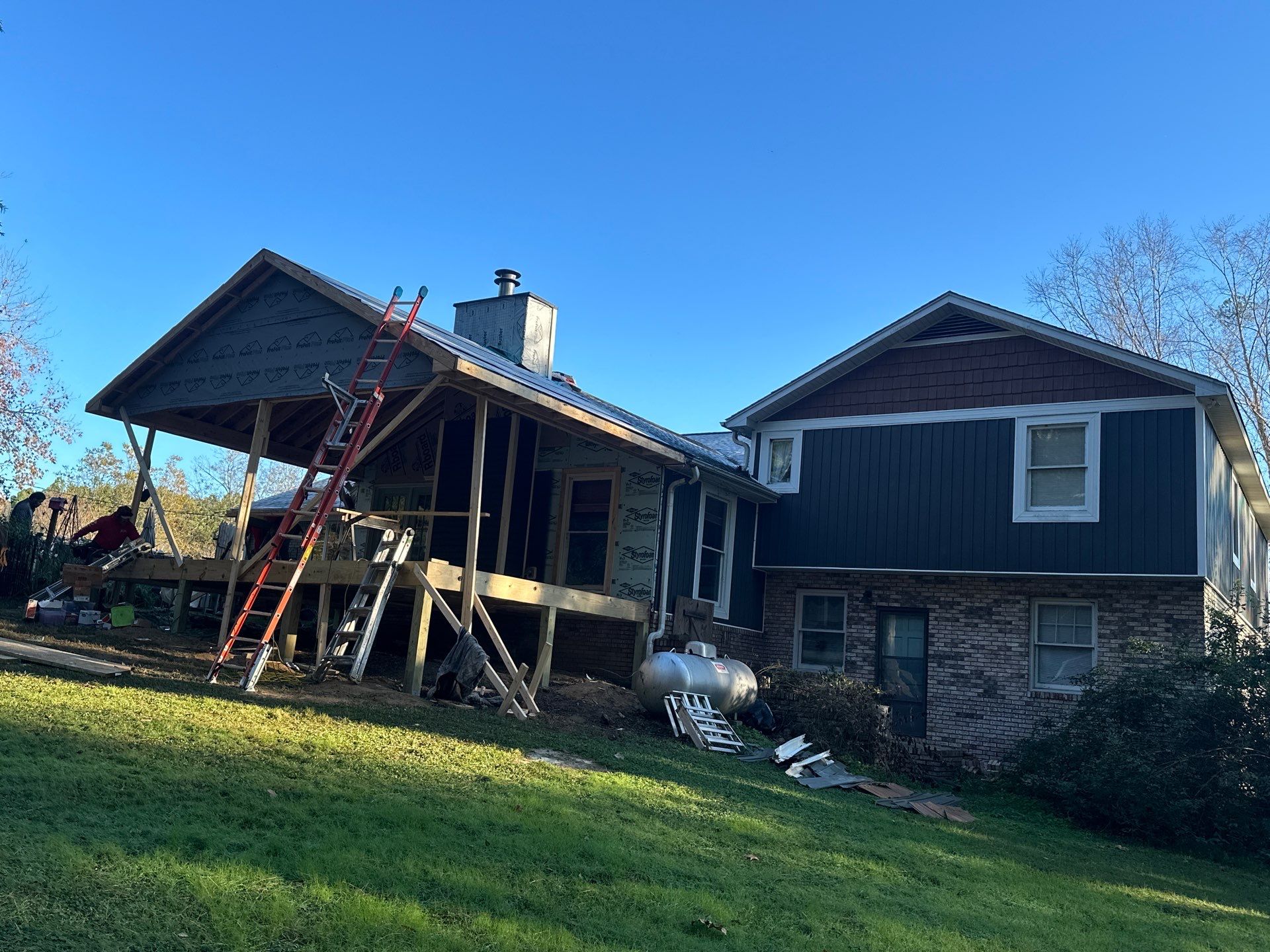

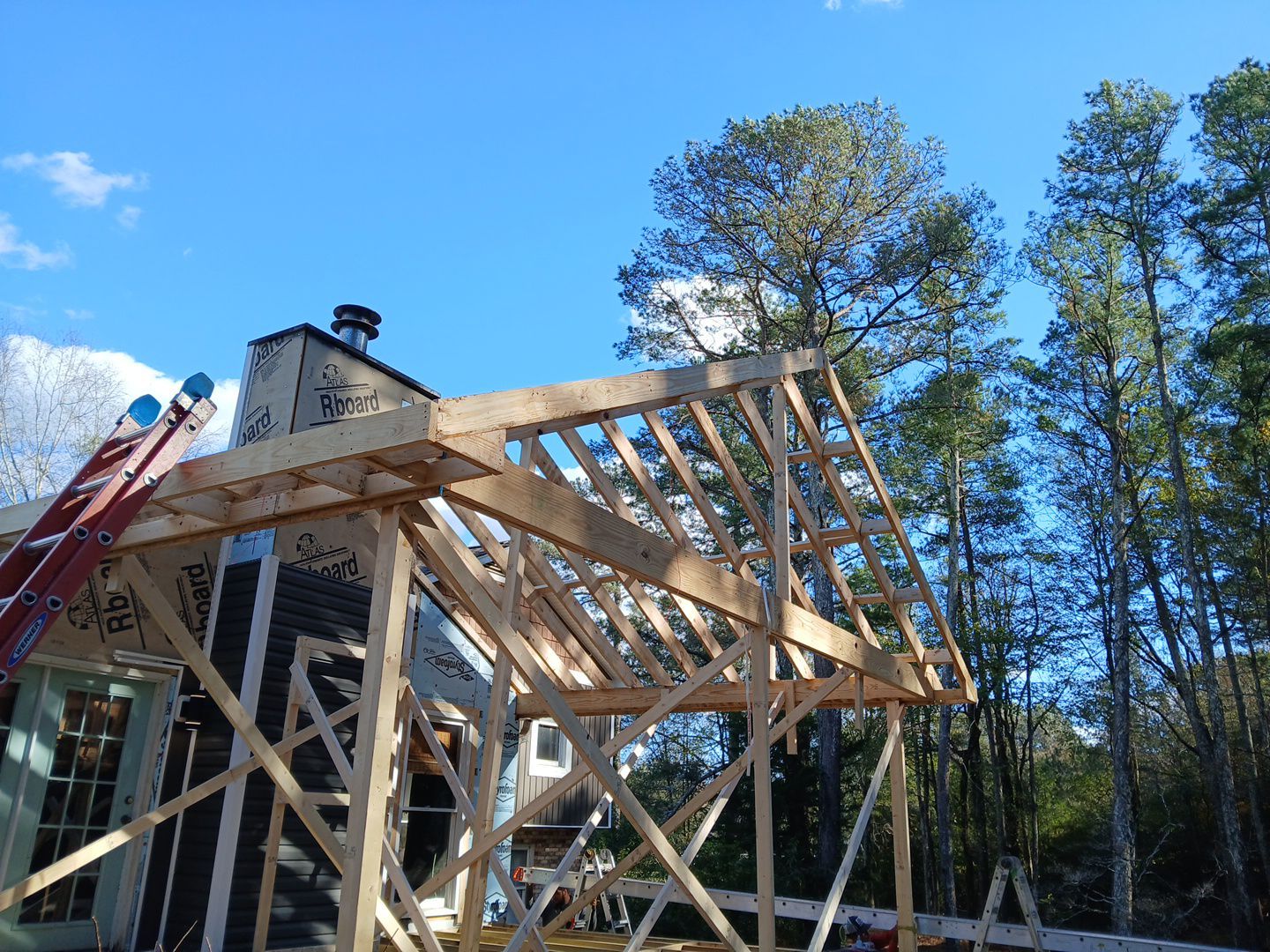

✔️ Frame roof with 2x10 double beams and 2x8 rafters on 16” centers
✔️ Install 7/16” OSB plywood for roof sheathing
✔️ Frame boxed overhangs on eaves and rakes for a finished look

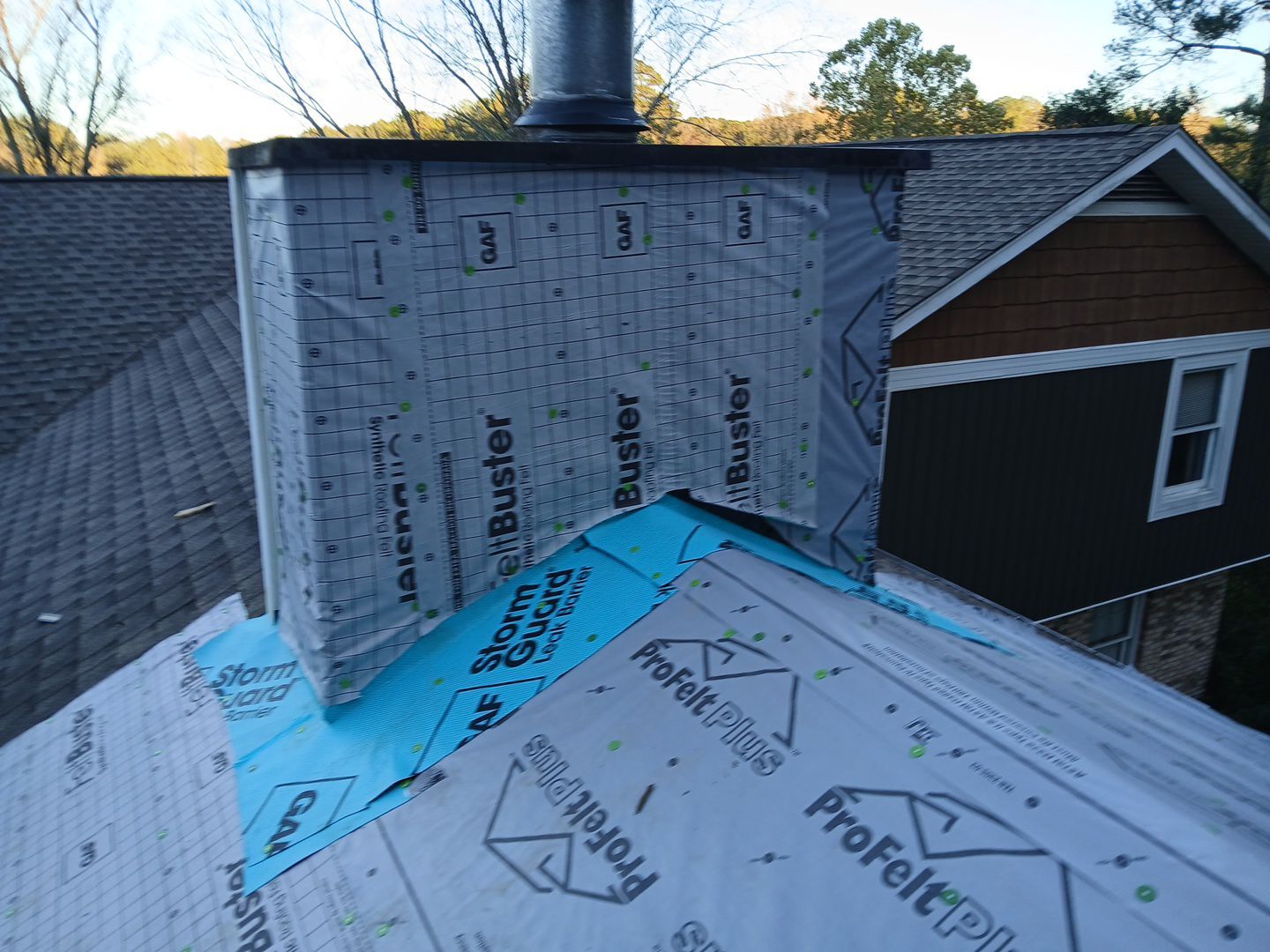

✔️ Apply GAF Felt Buster synthetic underlayment for superior moisture protection
✔️ Install 26-gauge white drip edge metal on eaves and rakes
✔️ Install GAF HDZ dimensional shingles (Weathered Wood) to match existing roof
✔️ Install GAF ridge vent for improved ventilation
✔️ Install GAF Seal-A-Ridge for a secure and weatherproof finish
✔️ Finish with vinyl soffit and white metal fascia
🌧️ Gutter System:
✔️ Install new 6” white gutters on the new roof addition and existing house sides for proper drainage
✔️ Install 3” white downspouts for efficient water flow
🏡 French Door Installation:
✔️ Remove existing French door & interior trim for replacement
✔️ Apply window tape around the wood framing for a tight seal
✔️ Install homeowner-provided French door with new interior trim
✔️ Seal, prime, and apply two coats of paint on the door and trim
✔️ Replace exterior metal wrap for a clean, finished look
🎨 Aesthetic Upgrades:

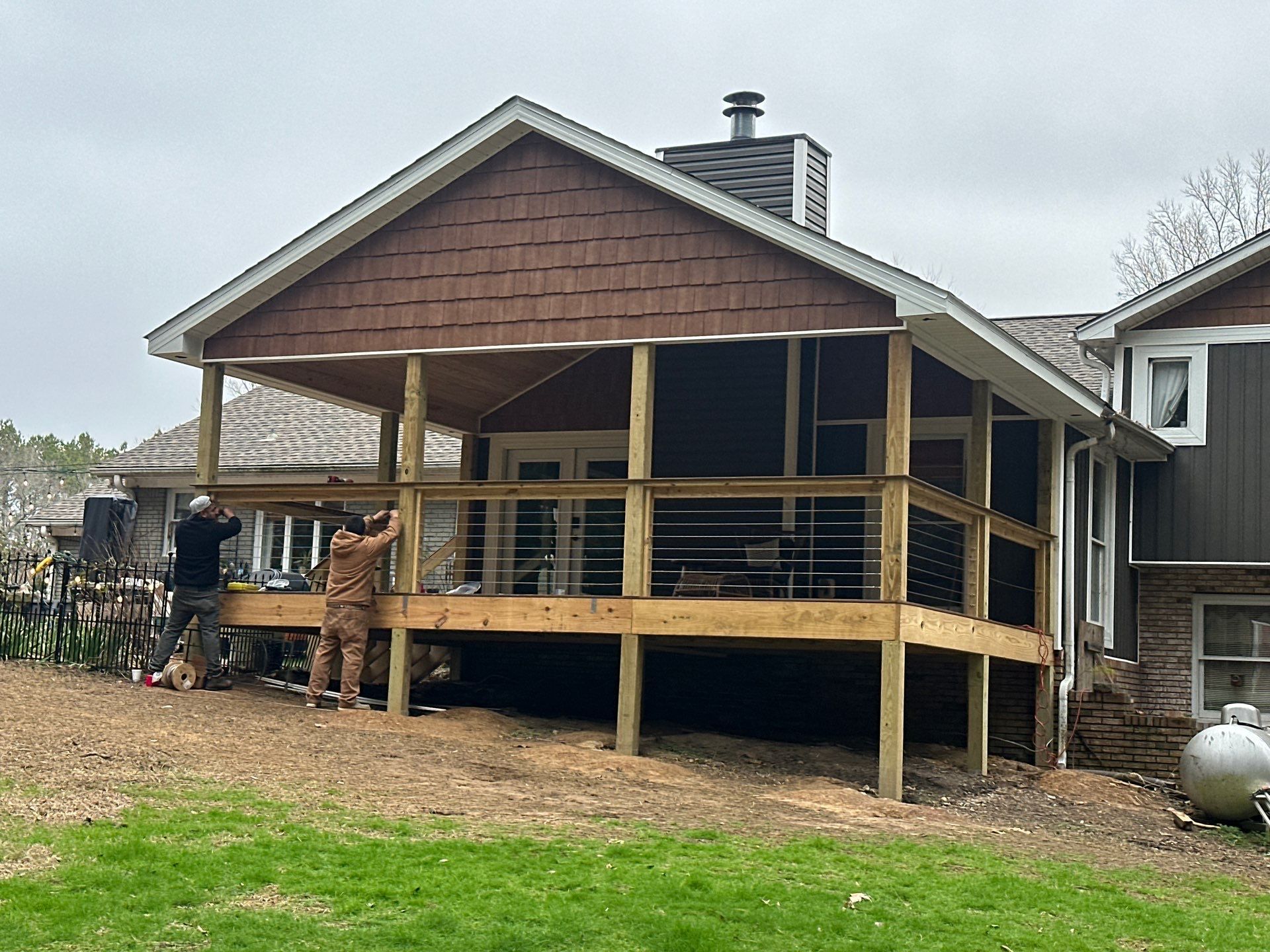

✔️ Install vinyl shake siding on the gable to match the existing design

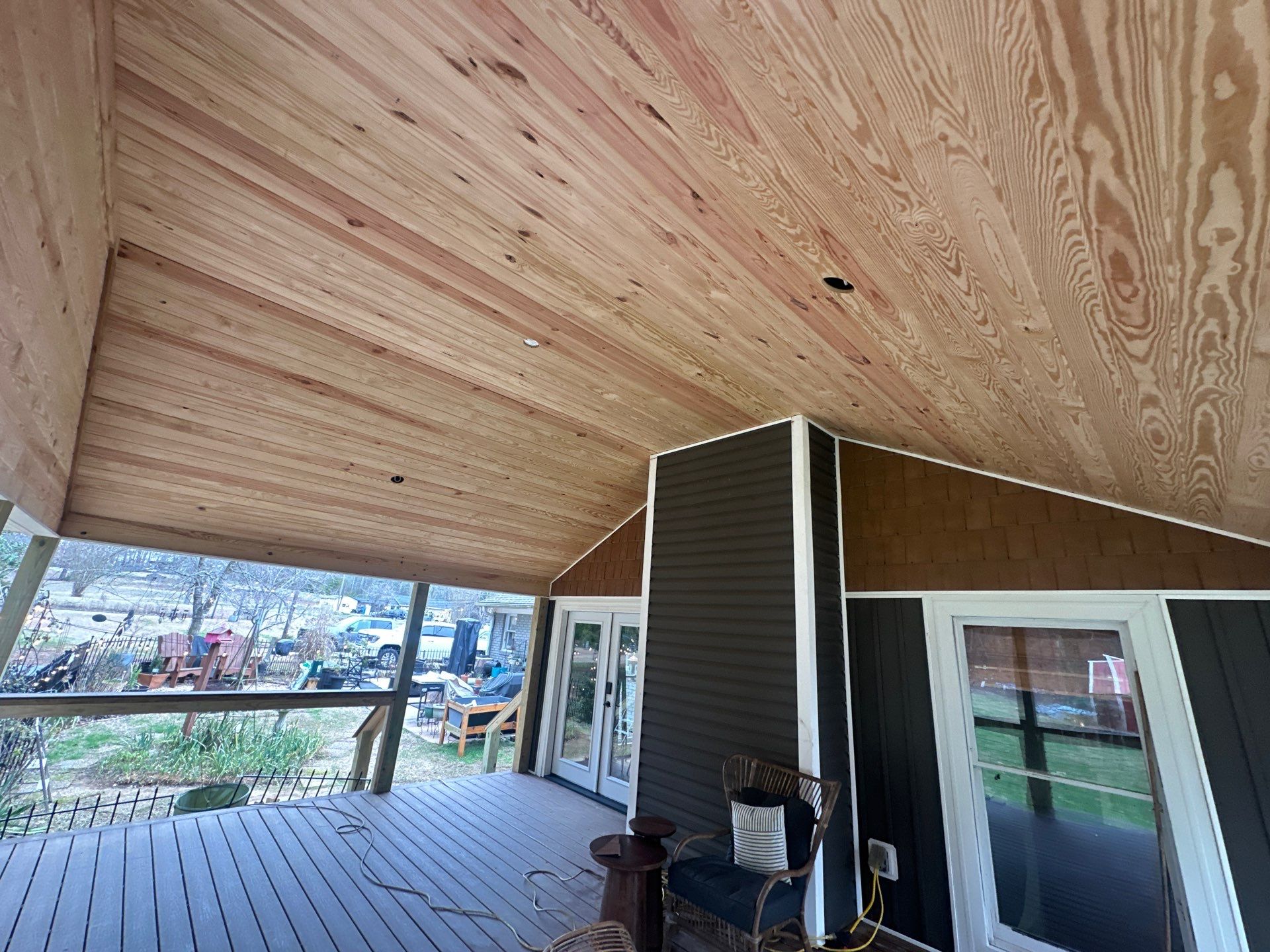

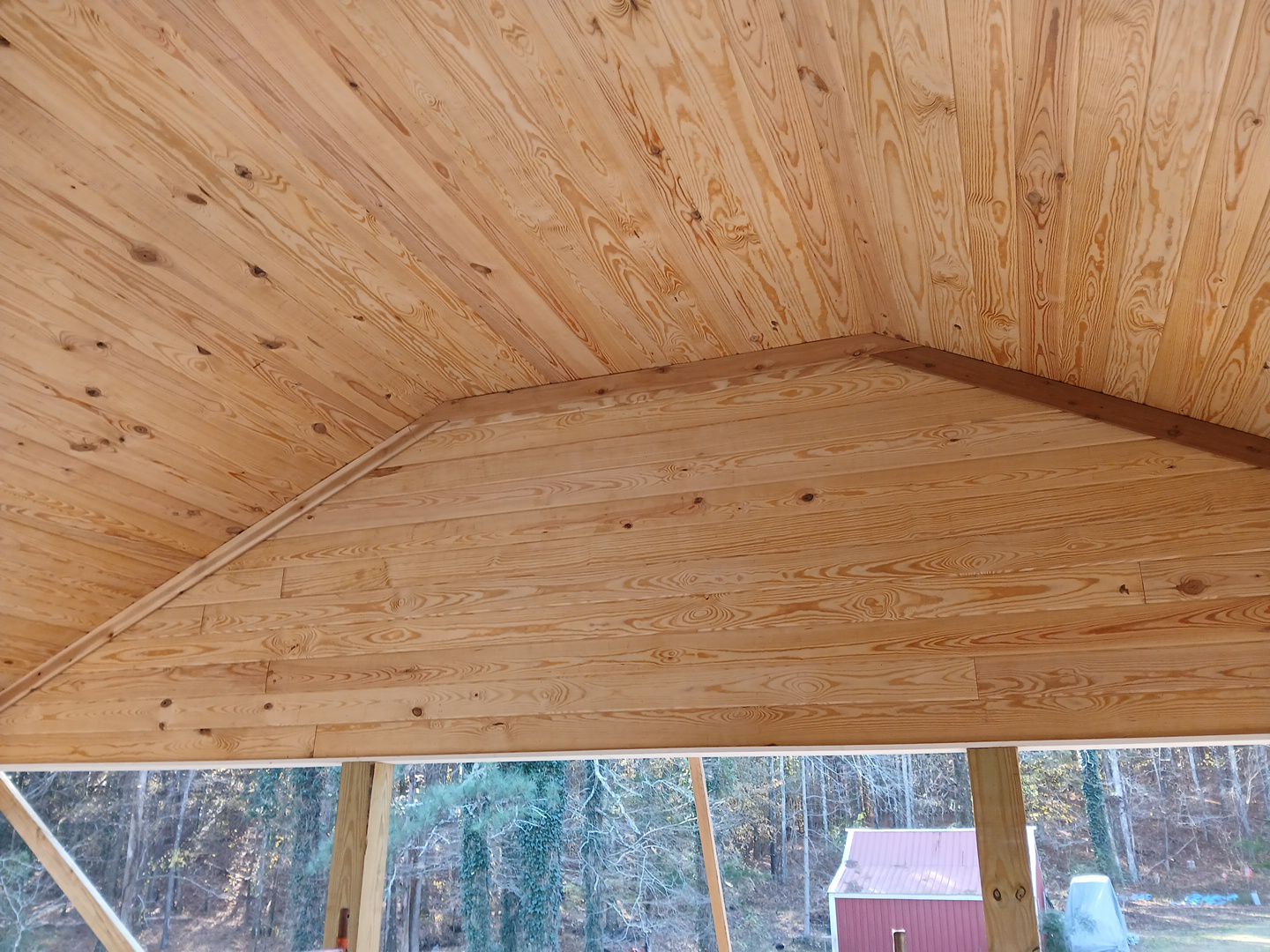

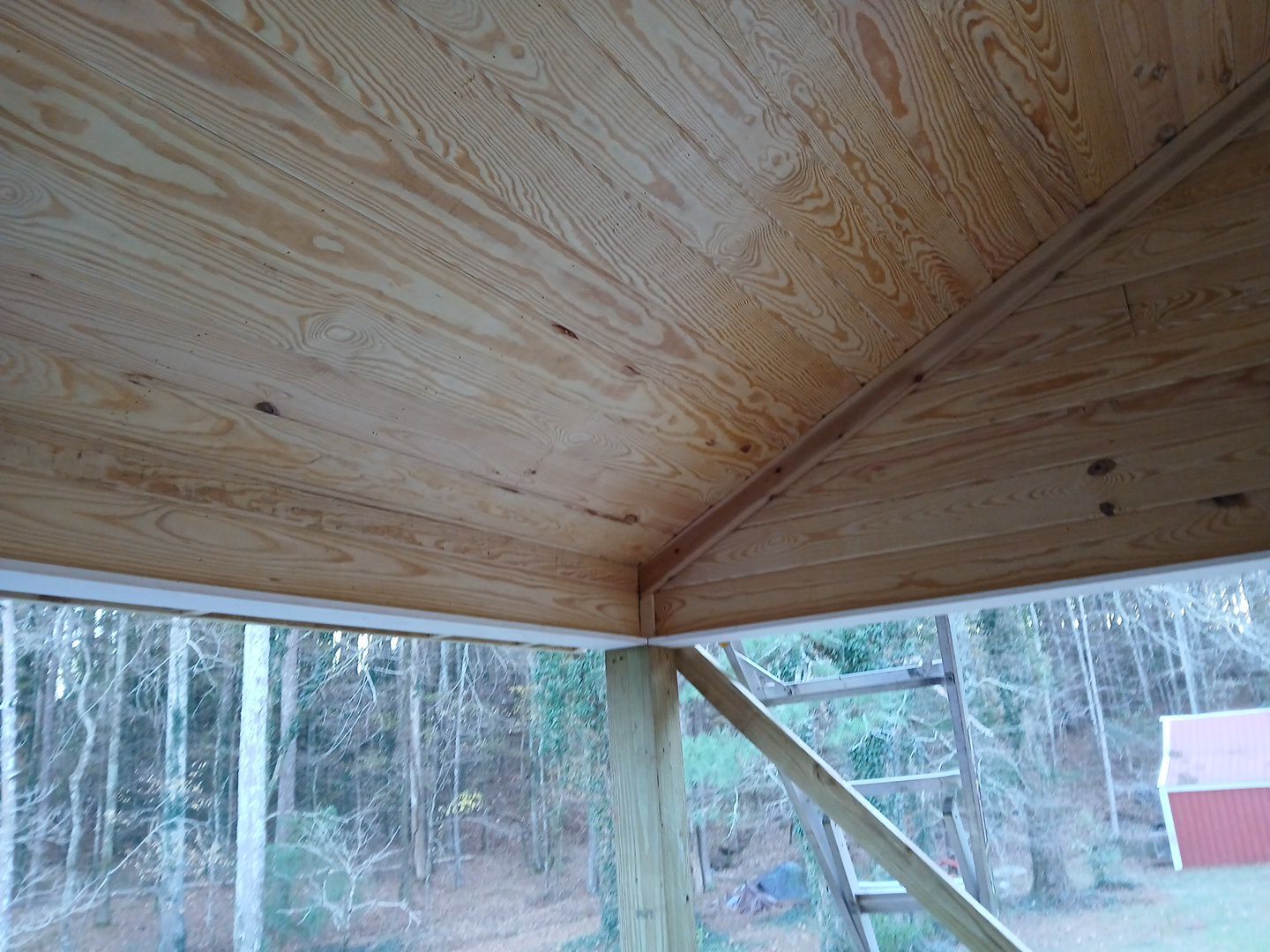

✔️ Finish ceiling, beams, and inside gable with 1x6 tongue and groove pine lumber for a warm, natural touch
✔️ Install (7) 6x6 posts for strong structural support
🔹 A Functional & Stylish Outdoor Living Space!
This back porch addition is built for durability, comfort, and aesthetics—blending high-quality materials with expert craftsmanship for a space that will last for years!
